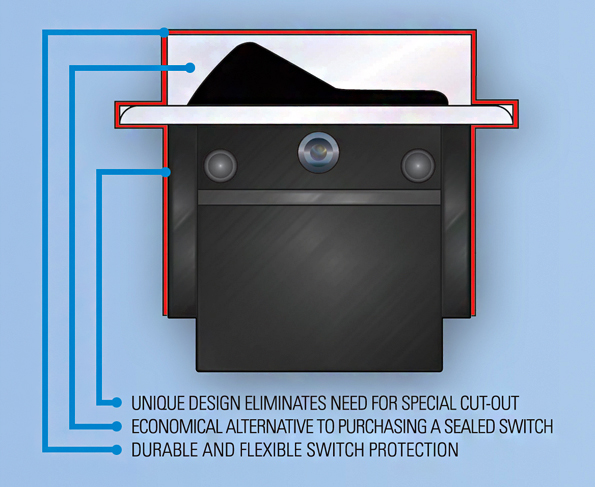

CRYSTAL SWITCH SEALS SPECIFICATIONS

Our highly optimized engineering procedure for Crystal Seals allows us to produce the most durable, customized crystal seals on the market at fast rates and at competitive prices. Indeed, complex processes are executed efficiently and precisely thanks to our engineering staff's expertise, who bring upwards of 30 years of experience to every project. With our in-house machine shop, we can turn a blueprint into a prototype in less than 1 week.

   Enclosure Protection: IP54
   Material: Urethane ASTM D2240/D792 (Also available in silicone material upon request.)
   Temperature Range: -40°F to +225°F
   Resistant to: Alcohols, Mineral oils, diesel, ozone, oxidation and radiation.
   Operational Life: 100,000 actuations (under normal conditions)
   Shelf Life: Excess of 25 years

VALUE ADDED SERVICES

At ZāGO our skilled technicians offer the following Value Added Services using state of the art equipment:

   Complete assembly of Crystal Switch Seals on rocker switches
   Design Modification
   Applications & Engineering Assistance
   Custom Packaging

At ZāGO we value your satisfaction above all else. ZāGO's quality standards are the highest in the industry; our Crystal Rocker Switch Seals are rated IP54 and add exceptional value to your standard rocker switches. Communicate with us about your interests, and you will receive a quick response from us with a solution plan and a quotation.

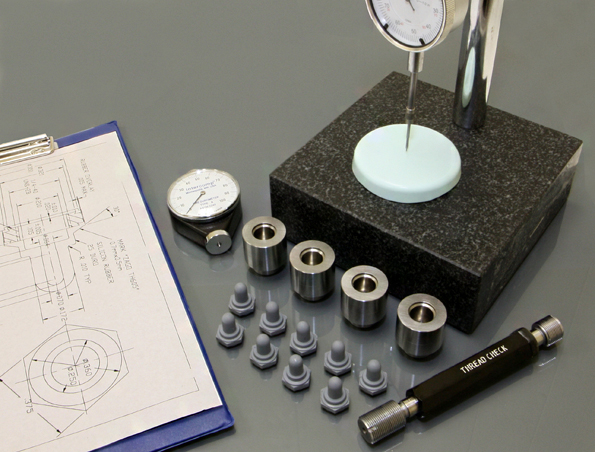

Switch Boots Specifications

ZāGO's team crafts strong and maneuverable one-piece switch boots. Our manufacturing process includes testing raw silicone within tight quality control standards, and then selecting the appropriate silicone needed for each order. Our technicians then re-compound the rubber by incorporating cure and coloring agents to the final elastomer. Next, the materials are combined and molded according to specifications to precisely fit each toggle switch, push button switch, or rotary switch. By replacing the ordinary mounting nut with ZāGO's seal boot, your switch will have full protection. No special handling is required; they are easily installed and fit over most standard switches.

ZāGO SWITCH BOOTS MATERIALS:

CONSTRUCTION & DESIGN

   Boots are designed and constructed to the physical dimensions specified. All threaded parts are in accordance with FED-STD-H28 unless otherwise specified.
   Military Specification: Meets MIL-B-5423
   Temperature Range: -93 F to +400 F
   Ingress Rating: IP68
   Pressure Range: 15 psi internal and 15 psi external
   Shelf Life: 25 Years (depending on environment)

MOUNTING NUT

Corrosion resistant – Nickel Plated Brass

RUBBER ELEMENT

Commercial – High Strength silicone rubber, grades 30, 50 or 60.
Military – Silicone Rubber in accordance with A-A-59588 Class 3a, grades 30, 50, or 60. Standard color is gray. Other colors are available upon request.

While specifications are negotiable between the customer and the supplier, superior compound properties and a high frequency of re-testing may result in higher costs to produce the finished product.

All boots are crafted from a single-piece design and can be made DFARS and ROHS compliant. Based on the same design and engineering principles used in demanding military applications, ZāGO switch boots assure long lasting performance for your switches, circuit breakers or potentiometers.

For unusual requirements, ZāGO can adjust existing boots or custom design boots to meet the customer's specifications.

Choose the best for your switches.

INSTALLATION INSTRUCTIONS

With more and more product applications requiring protection against the elements, our switch boots can be found on the most innovative products on the market guaranteeing high performance even in the most challenging environments. Protect your switches with ZaGO’s switch boots, installation is quick and easy, just follow these simple steps:

1.    Remove panel nut from switch bushing.
2.    Place switch bushing through panel mounting hole.
3.    Adjust back –up nut to allow a maximum of 3 – 4 threads to protrude through panel.*
4.    Place switch boot onto bushing thread and tighten.

CUSTOMIZABLE FEATURES:

1.    Weight
2.    Composition
3.    Form
4.    Thickness
5.    Hardness (available from 30 to 60 durometers)
6.    Colors (Pantone colors, Federal Standard colors, neons, collegiate colors, pearlescent and metallic colors, UV glow effects and glow-in-the-dark.)

RESULTS

All switch boots have single-piece designs and can be DFARS and ROHS compliant. ZāGO has created switch boots that grant long lasting performance to switches, potentiometers and circuit breakers by applying rigorous design and engineering principles used in demanding military applications. Moreover, ZāGO has the capacity to custom-design design boots or modify existing boots to meet your every specifications. Choose the best for your switches, and work with us today.

Our consumers maximize the capacity of their devices by using our switch boots. The switch boots protect electronic devices from the degrading and corroding effects of harsh environmental conditions, thereby significantly extending their life cycles. Without ZāGO switch boots, devices such as panels and circuit breakers will almost inevitably deteriorate and become inoperable. ZāGO has a designed a solution for those working in extreme environments, and for those who require the absolute highest product standards by using the highest quality materials.
